설치과정
K-PaaS Local 설치 프로세스

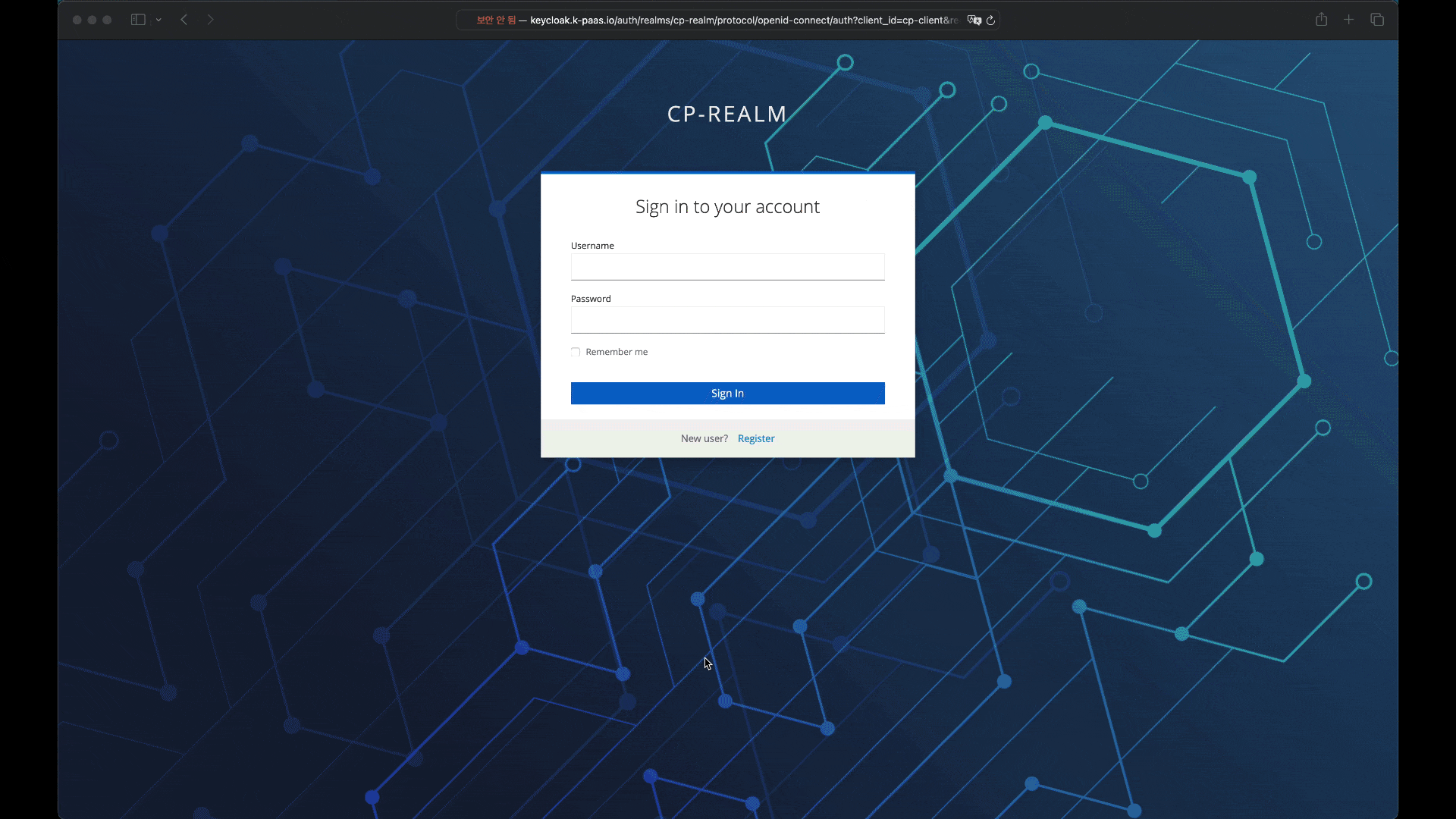

설치 후 사용 화면
K-PaaS Lite를 설치하면 다음과 같은 Container Platform Portal을 사용할 수 있습니다.

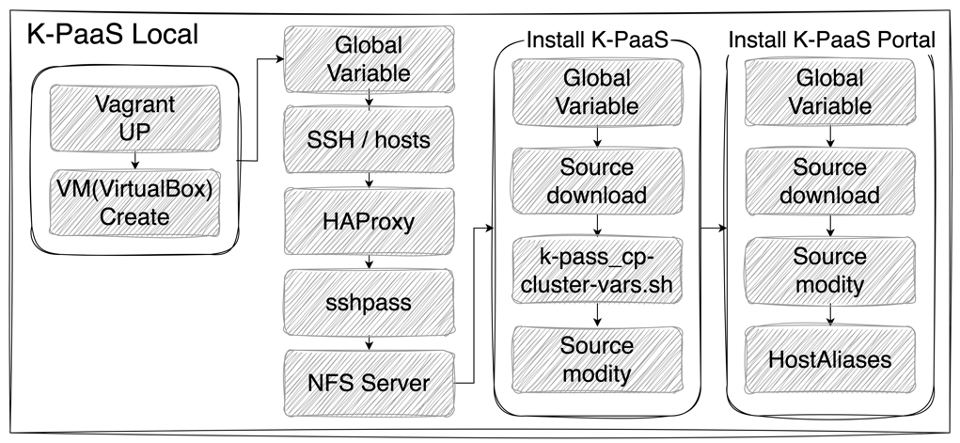

설치 프로세스
Installation
VirtualBox (x86/Intel)
vagrant up &> ./logs/vagrant_$(date +%Y%m%d_%H%M%S).logVMware (ARM64/Apple Silicon)
vagrant up --provider=vmware_desktop &> ./logs/vagrant_$(date +%Y%m%d_%H%M%S).logVM stop
vagrant suspendVM destroy
vagrant destroy -fLog
Vagrant 로그
Platform 로그
Platform installation complete
vagrant@master01:~$ kubectl get po -A
NAMESPACE NAME READY STATUS RESTARTS AGE
chaos-mesh chaos-controller-manager-6648dff67b-8dv6w 1/1 Running 0 26h
chaos-mesh chaos-daemon-49qvk 1/1 Running 0 26h
chaos-mesh chaos-dashboard-58d8d8589c-tvsl5 1/1 Running 0 26h
chaos-mesh chaos-dns-server-6cbc94c77-q8mc4 1/1 Running 0 26h
chartmuseum chartmuseum-648968c7dd-n7cjg 1/1 Running 0 26h
cp-portal cp-portal-api-deployment-56b5c87fcd-295cs 1/1 Running 0 22h
cp-portal cp-portal-catalog-api-deployment-6f94b7d5c-qmp9p 1/1 Running 0 23h
cp-portal cp-portal-chaos-api-deployment-74f5955f8d-22697 1/1 Running 0 23h
cp-portal cp-portal-chaos-collector-deployment-69f847bff9-9jc8k 1/1 Running 0 23h
cp-portal cp-portal-common-api-deployment-7b48b54788-zk75r 1/1 Running 0 22h
cp-portal cp-portal-metric-api-deployment-575f9d4df8-qvf85 1/1 Running 0 23h
cp-portal cp-portal-terraman-deployment-db5544bb4-v6lcz 1/1 Running 0 23h
cp-portal cp-portal-ui-deployment-788d99bb45-x8hn4 1/1 Running 0 21h
default nfs-subdir-external-provisioner-59b6cdb74d-dkwlm 1/1 Running 0 46h
harbor harbor-core-547d8bcf7b-vhr5r 1/1 Running 0 26h
harbor harbor-jobservice-5db8b59574-hbn49 1/1 Running 0 26h
harbor harbor-portal-7c8cf785d6-h6bg4 1/1 Running 0 26h
harbor harbor-postgresql-0 1/1 Running 0 26h
harbor harbor-redis-master-0 1/1 Running 0 26h
harbor harbor-registry-6fd978fbf5-nchs8 2/2 Running 0 26h
harbor harbor-trivy-0 1/1 Running 0 26h
ingress-nginx ingress-nginx-controller-74f695ff79-mp5xx 1/1 Running 0 46h
keycloak keycloak-0 1/1 Running 0 21h
keycloak keycloak-1 1/1 Running 0 21h
kube-system calico-kube-controllers-695788f969-6kp65 1/1 Running 0 46h
kube-system calico-node-6m8st 1/1 Running 0 46h
kube-system coredns-dbd95956c-mp6k4 1/1 Running 0 20h
kube-system coredns-dbd95956c-stbd5 1/1 Running 0 20h
kube-system dns-autoscaler-846b5fbd88-pvvfg 1/1 Running 0 46h
kube-system kube-apiserver-master01 1/1 Running 0 46h
kube-system kube-apiserver-master02 1/1 Running 0 46h
kube-system kube-controller-manager-master01 1/1 Running 0 46h
kube-system kube-controller-manager-master02 1/1 Running 0 46h
kube-system kube-scheduler-master01 1/1 Running 0 46h
kube-system kube-scheduler-master02 1/1 Running 0 46h
kube-system metrics-server-65765bb6cf-qtzdb 1/1 Running 0 46h
kyverno kyverno-admission-controller-7b74bfcfcb-gtjjx 1/1 Running 0 46h
kyverno kyverno-background-controller-7ff58cc7cb-sdgdg 1/1 Running 0 46h
kyverno kyverno-cleanup-controller-6999cc56d9-s4qvk 1/1 Running 0 46h
kyverno kyverno-reports-controller-64d994cdc5-nxb6n 1/1 Running 0 46h
mariadb mariadb-0 1/1 Running 0 26h
metallb-system controller-68cccbf98c-8s2m9 1/1 Running 0 46h
metallb-system speaker-2kzd8 1/1 Running 0 46h
openbao openbao-0 1/1 Running 0 26h
openbao openbao-agent-injector-6567764cc9-rx54t 1/1 Running 0 26h
